• Rotationsdämpfer für Schrittmotoren DMP 20 / 29 / 37
  • DMP 20 / 29 / 37 Inertial Damper for Stepper Motors

DMP

The reliable damping component without loss of torque

DMP 20, 29 and 37, Phytron´s inertial dampers improve the system´s characteristics of stepper motor applications, by reducing the settling times and by suppression of system resonances impressively. The dampers are designed for stepper motors size 25 (NEMA 11), 32 (NEMA 14) and 37 (NEMA 17) with second shaft, used in optical applications or other sensitive environments.

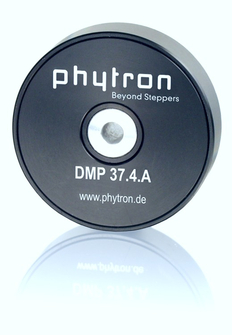

DMP 20 / 29 / 37 Inertial Damper for Stepper Motors

Technical Details

  • Inertial damper for stepper motors with double shaft of size 25 / 32 / 42 (NEMA 11 / 14 / 17)
  • External diameter 20, 29 or 37 mm
  • Mounts onto motor shaft
  • Material: Aluminium / plastic
  • Diameter: 2.5, 3, 4, 5 mm or customized
  • Headless screws for mounting ISO 4027 (DIN 914/A2)
  • Environmental conditions:
    Ambient temperature 0 to +60 °C
    Storage temperature -20 to +70 °C
  • Protection class  IP 62 (IEC 34)
